Available with 10”,12” and 15”.

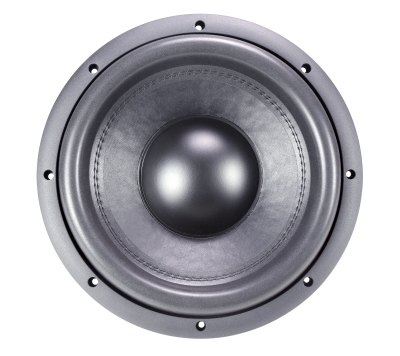

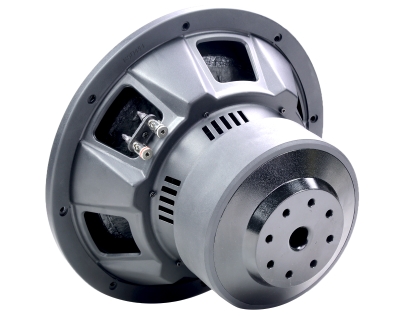

The SE-V5 Series subwoofer design FEM optimized open motor, provide low distortion and highly motor efficiency. Built in double Nomex &PC mixture dampers. Kraft pulp fiber non-pressed cone, 2.5inch diameter 4 layer coil, Double stacked Ferrite, Stamped steel basket, copper coil, black aluminum former material, Kraft pulp fiber non-pressed cone,foam surround material. The SE-V series has continued to be one of the most popular subwoofer lines we have ever released.
Spec :
– 10”
– 1000 Watts RMS
– 2.5” voice coil, D2/D4 ohms
– freq. response: 40Hz-300Hz
– Sensitivity: 84.8dB
Spec:
– 12”
– 1000 Watts RMS
– 2.5” voice coil, D2/D4 ohms
– freq. response: 38Hz-300Hz
– Sensitivity: 85.6dB
Spec:
– 15”
– 1000 Watts RMS
– 2.5” voice coil, D2/D4 ohms
– freq. response: 34Hz-300Hz
– Sensitivity: 86.8dB
Available with 10”, 12” and 15”

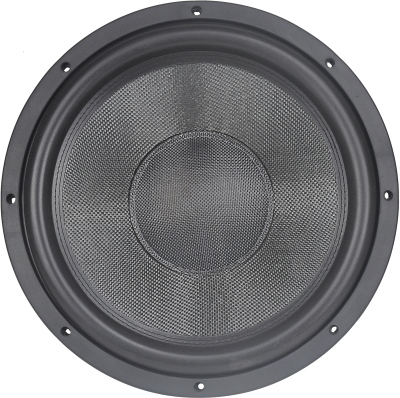

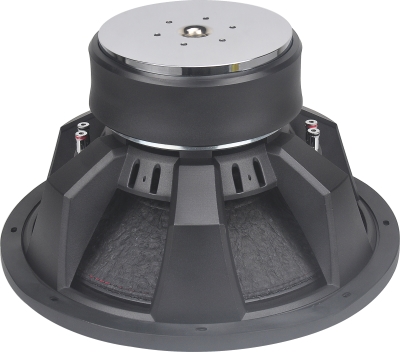

SG-G2 sub’s built with double high flux ferrite motor. The motor utilizes Y30, features an enormous 15mm (0.6”) magnetic gap to ensure the coil is always under control.
This motor drives a 2.5” diameter 4-Layer Cooper Wire Aluminum Coil with an extremely long winding (0.65” long) wound on a thick aluminum former to incredible levels of excursion.
This model use fiber glass cone increases the intensity of the cone and reduces nonlinear distortion. The SG-G2 series is really a different kind of woofer due to its incredibly linear suspension. They are designed for the LOWEST level of bass extension possible in a small enclosure while maintaining extremely low levels of distortion.
Spec:
– 10”
– 1000 Watts RMS
– 2.5” voice coil, D2/D4 ohms
– freq. response: 45Hz-300Hz
– Sensitivity: 85.7dB
Spec :
– 12”
– 1000 Watts RMS
– 2.5” voice coil, D2/D4 ohms
– freq. response: 41Hz-300Hz
– Sensitivity: 88.6dB
Spec :
– 15”
– 1000 Watts RMS
– 2.5” voice coil, D2/D4 ohms
– freq. response: 39Hz-300Hz
– Sensitivity: 88.7dB

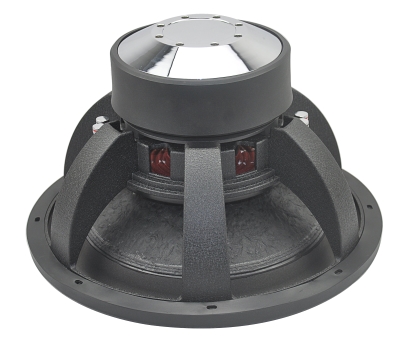

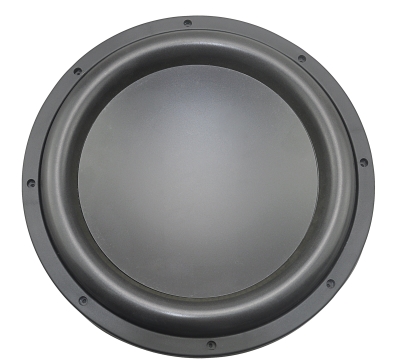

SG10, SG12 and SG15, built with high flux ferrite motor. The motor utilizes Y30. The SG Series features an enormous 12mm (0.5”) magnetic gap to ensure the coil is always under control.
Keeping the subwoofer operating cool under such extreme conditions, is the result of the advanced air flow cooling design incorporated into the motor structure.
This motor drives a 3” diameter 4-Layer Flat Wire Aluminum Coil with an extremely long winding (0.95” long) wound on a thick aluminum former to incredible levels of excursion.
Spec :
– 10”
– 1000 Watts RMS
– 3” voice coil, D2/D4 ohms
– freq. response: 44Hz-400Hz
– Sensitivity: 82dB
Spec:
– 12”
– 1000 Watts RMS
– 3” voice coil, D2/D4 ohms
– freq. response: 40Hz-400Hz
– Sensitivity: 85.3dB
Spec:
– 15”
– 1000 Watts RMS
– 3” voice coil, D2/D4 ohms
– freq. response: 35Hz-400Hz
– Sensitivity: 86dB
