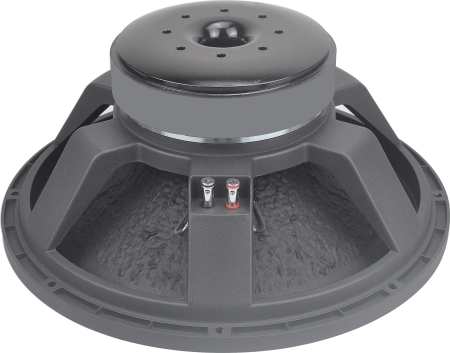

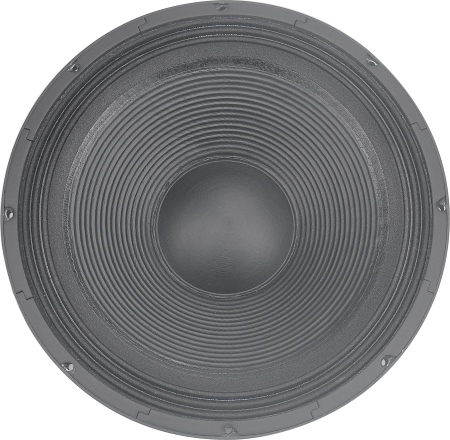

The PM415/PM418 employs a 4” diameter voice coil that provides an AES rated 1000 watts of continuous power handling and a full 2000 watts of peak rated power handling.
The operating range is 30Hz to 2500Hz. The subwoofer uses high energy FERRITE magnetics to achieve a very high acoustic output to weight ratio.
It is recommended that the speaker be loaded into a properly designed vented enclosure.
Spec :
– 15” Subwoofer
– 1000 Watts RMS
– 4” voice coil
– impedence: 8 ohms
– freq. response: 35Hz-3KHz
– Sensitivity: 96.3dB
Spec:
– 18” Subwoofer
– 1000 Watts RMS
– 4” voice coil
– impedence: 8 ohms
– freq. response: 30Hz-2.5KHz
– Sensitivity: 96dB

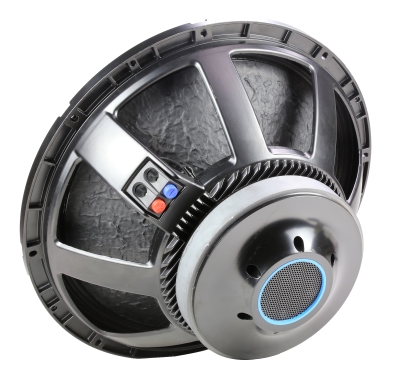

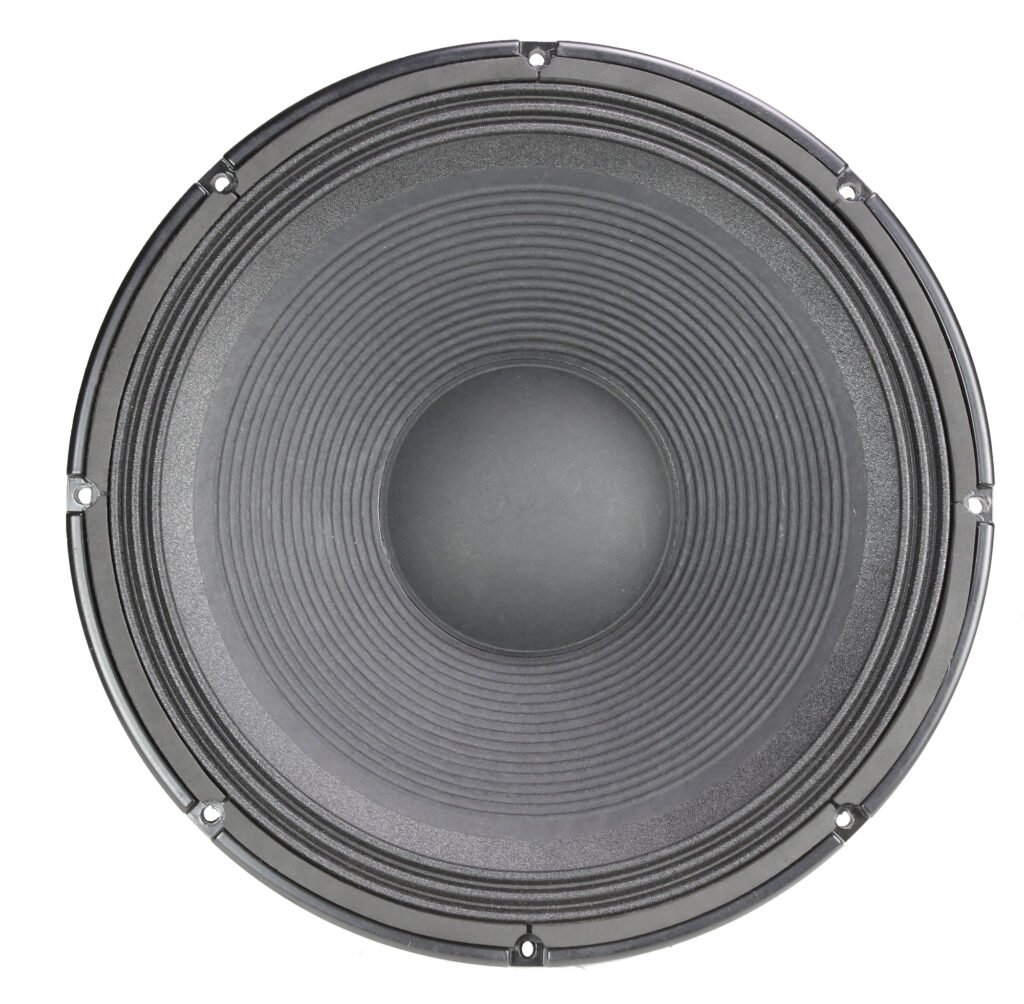

The PW15G2/PW18G2 employs a 4” diameter voice coil that provides an AES rated 1000 watts/1500wattes of continuous power handling and a full 3000 watts of peak rated power handling.
The operating range is 38Hz to 1500Hz. The subwoofer uses high energy FERRITE magnetics to achieve a very high acoustic output to weight ratio.
It is recommended that the speaker be loaded into a properly designed vented enclosure.
Spec:
– 15” Pro Subwoofer
– 1000 Watts RMS
– 4” voice coil
– impedence: 4/8 ohms
– freq.response: 38Hz-1.5kHz
– Sensitivity: 95dB
Spec:
– 18” Pro Subwoofer
– 1500 Watts RMS
– 4” voice coil
– impedence: 4/8 ohms
– freq. response: 35Hz-1.2kHz
– Sensitivity: 96dB
Available with 15″ and 18″.

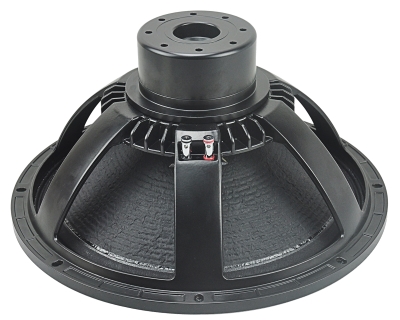

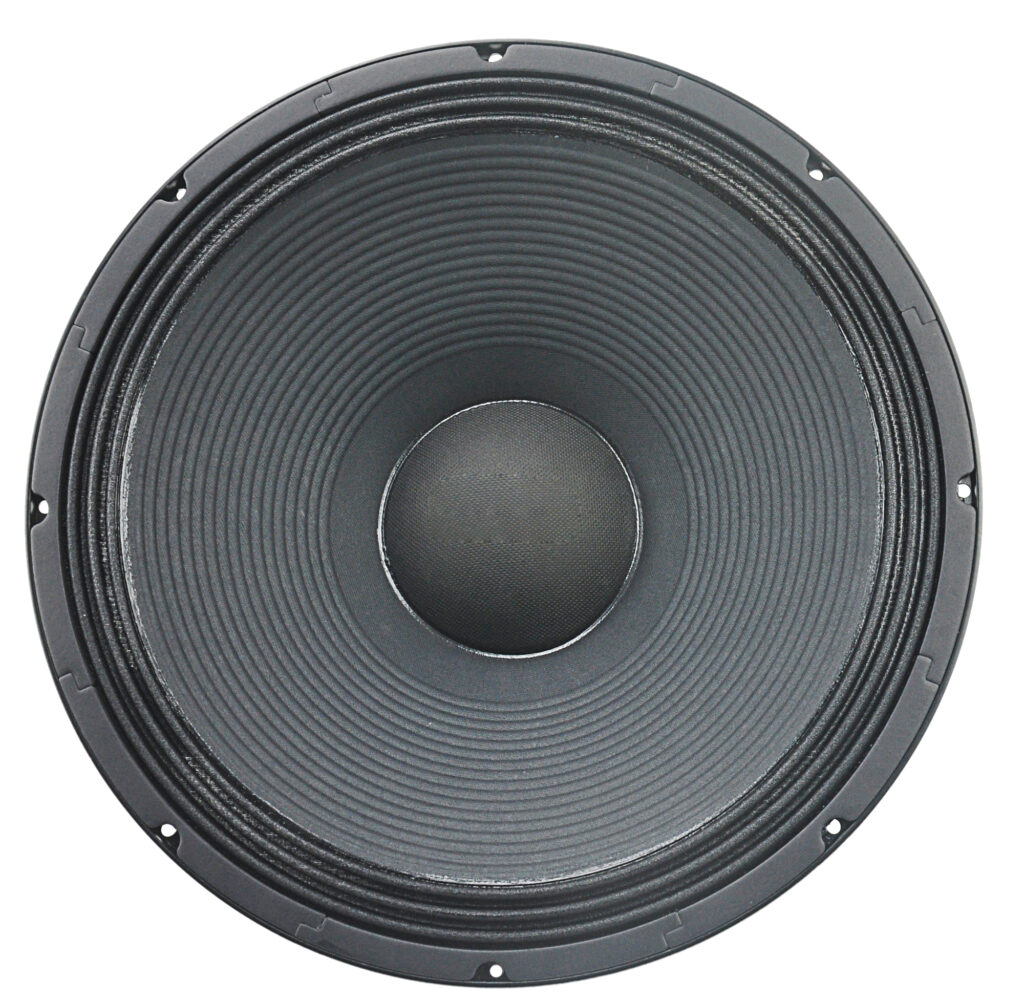

The PW415N/418N utilizes Auto Balanced Cooling technology to not only improve power handling and reliability but also increase power compression performance by carefully balancing and directing airflow to critical areas.
The speaker uses high energy NEO dymium magnetics to achieve a very high acoustic output to weight ratio.
Lighter weight and higher efficiency. The voice coil design is an inside/outside geometry with copper round wire to improve conversion efficiency and provide a very large cross-sectional area for superior cooling.
System linearity is achieved by employing magnetic flux demodulation devices in the structure to increase fidelity and sonic accuracy.
Spec :
– 15” Subwoofer
– 1000 Watts RMS
– 4” voice coil
– impedence: 8 ohms
– freq. response: 35Hz-3kHz
– Sensitivity: 96.3dB
Spec :
– 18” Subwoofer
– 1000 Watts RMS
– 4” voice coil
– impedence: 8 ohms
– freq. response: 30Hz-2.5kHz
– Sensitivity: 96dB
