Spec :
– 21”
– 2500 Watts RMS
– 5” voice coil
– impedence: 4/8 ohms
– freq. response: 31Hz-1.5KHz
– Sensitivity: 96.5dB
Spec:
– 24”
– 2500 Watts RMS
– 5” voice coil
– impedence: 4/8 ohms
– freq. response: 27Hz-1.5KHz
– Sensitivity: 97.8dB
Spec :
– 18”
– 1500 Watts RMS
– 4” voice coil
– impedence: 4/8 ohms
– freq. response: 38Hz-2kHz
– Sensitivity: 95.9dB

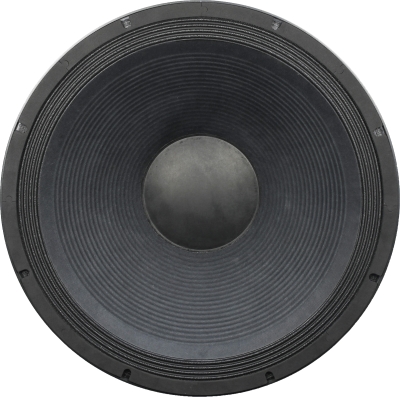

The PW18F/PW21F/PW24F uses FERRITE magnetics and a 4”/5” diameter voice coil that provides an AES rated 2500 watts of continuous power handling.
They are also features a double spider design insures very high displacement and linear response while maintaining excellent control.
The cone has been treated with a conformal coating designed to provide additional mechanical damping and moisture resistance.
The transducer chassis is a die cast aluminum design that insures a very high degree of structural integrity.
