Available with 5”, 6.5”, 8” and 10”
The 5” coaxial COX5G1 use 1.5” woofer CCAW voice coil and 1.5” tweeter NALR voice coil, 120+60 Watt program power handling.
They all Neo dymium coaxial transducer with aluminum basket, FEM optimized motor and suspensions. Single point source providing coherent wave front, ideal for compact 2-way systems.
Spec:
– 5”
– 60 Watts RMS
– freq. response: 120Hz-20KHz
– Sensitivity: 92dB
– Woofer: 1.5” voice coil, 4 ohms
– Tweeter: 1.5” voice coil, 4 ohms
Spec :
– 10”
– 300 Watts RMS
– freq. response: 50Hz-18KHz
– Sensitivity: 96dB
– Woofer: 2.5” voice coil, 4 ohms
– Tweeter: 1.75” voice coil, 4 ohms
Spec :
– 6”
– 150 Watts RMS
– 2” voice coil
– impedence: 4 ohms
– freq. response: 104Hz-20KHz
– Sensitivity: 92.3dB
Spec :
– 8”
– 250 Watts RMS
– 2.5” voice coil
– impedence: 4 ohms
– freq. response: 65Hz-20KHz
– Sensitivity: 94.6dB
Spec:
– 10”
– 300 Watts RMS
– 2.5” voice coil
– impedence: 4 ohms
– freq. response: 48Hz-19KHz
– Sensitivity: 96.1dB

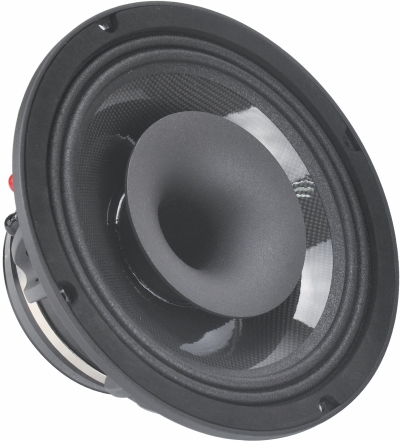

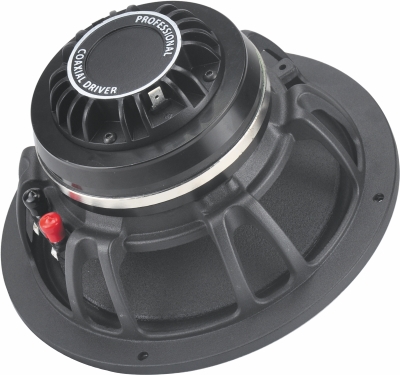

Available with 6.5”, 8” and 10”
The COX-N uses 2” woofer CCAW voice coil and 1.75” tweeter NALR voice coil, 300+100 Watt program power handling.
They all Neo dymium coaxial transducer with aluminum basket, FEM optimized motor and suspensions.
Single point source providing coherent wave front, ideal for compact 2-way systems.
