Spec :
– 4”
– 50 Watts RMS
– 1” voice coil
– impedance: 6 ohms
– freq. response: 150Hz-20KHz
– Sensitivity: 90.5dB
Spec :
– 5”
– 50 Watts RMS
– 1” voice coil
– impedance: 6 ohms
– freq. response: 134Hz-20KHz
– Sensitivity: 90.7dB

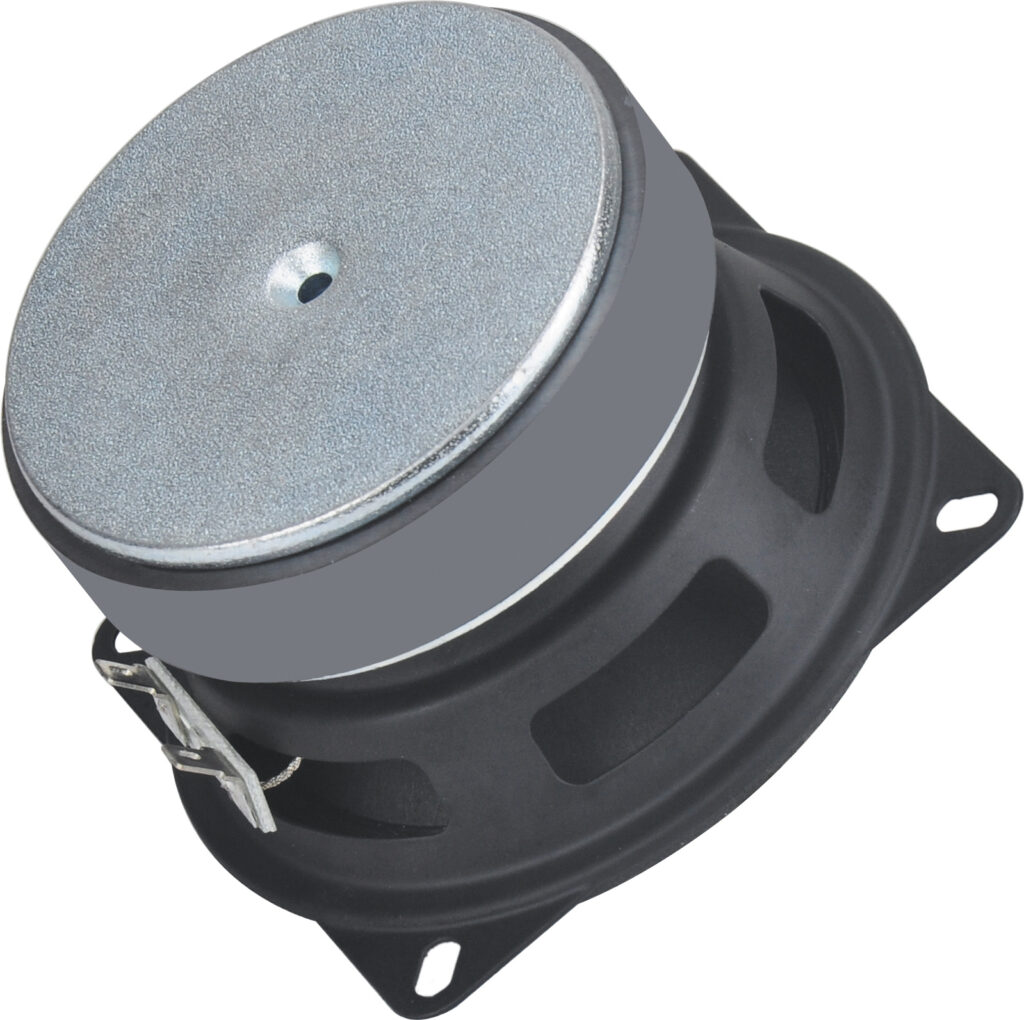

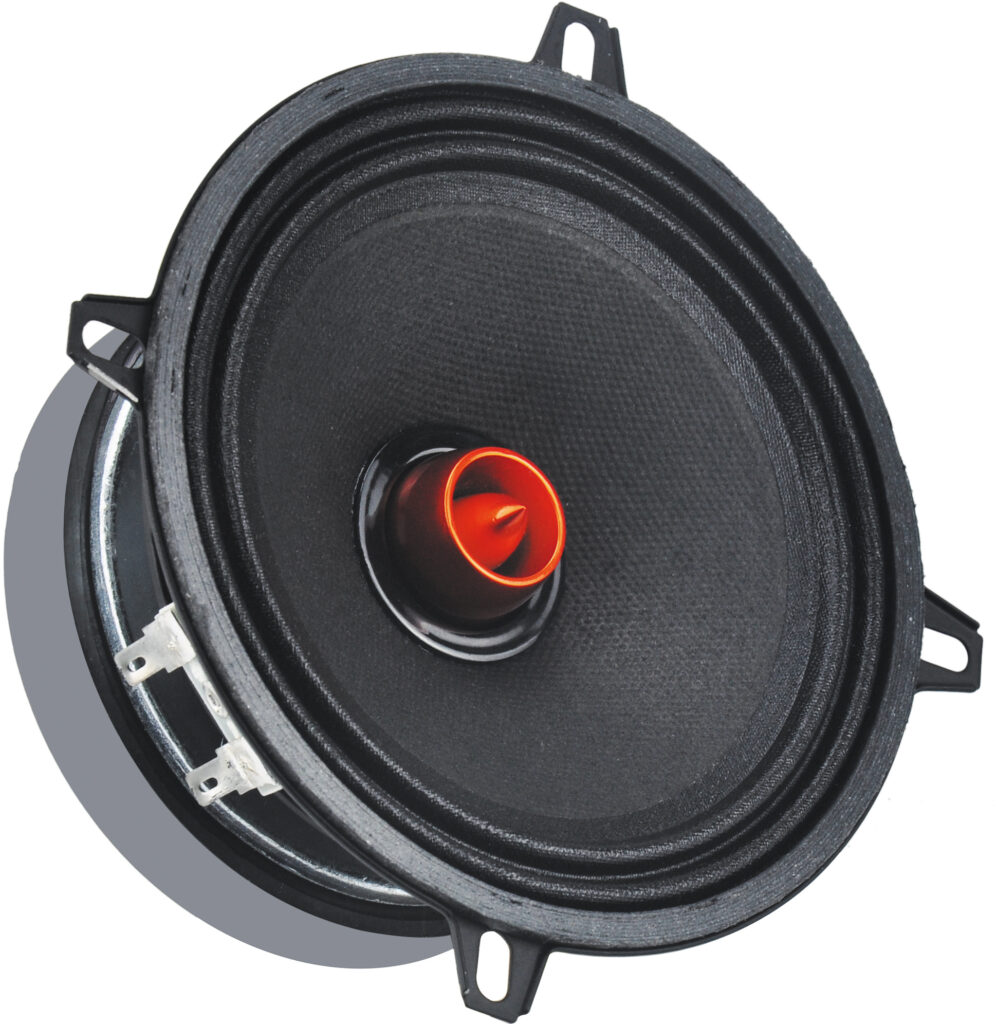

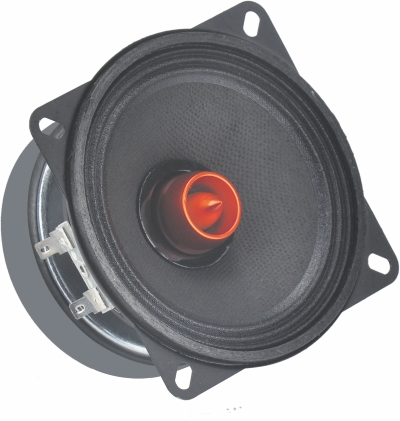

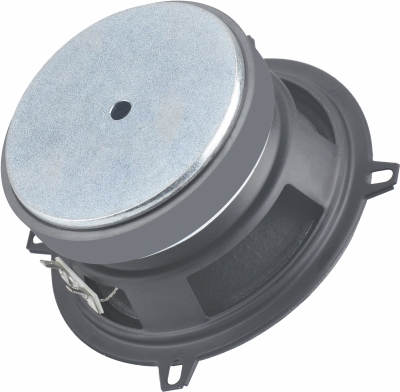

These ME4G/ME5G is a 6 ohms full range car-audio speaker. Featuring a 1″ high-temperature voice coil and high flux Ferrite magnet system. The cone features a non-pressed paper membrane and plastic bullets. The ME4G/ME5G has a compact size, with this feature makes it the ideal option for it to be used in small spaces. Also a perfect choice if you want to add midrange sound in your car.

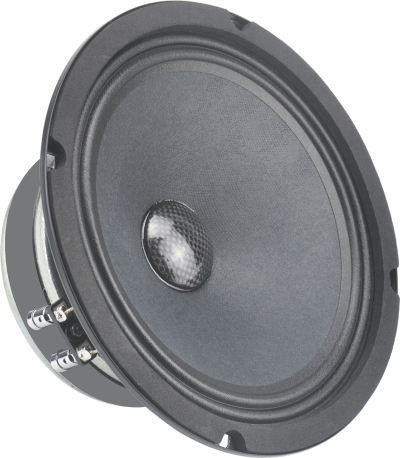

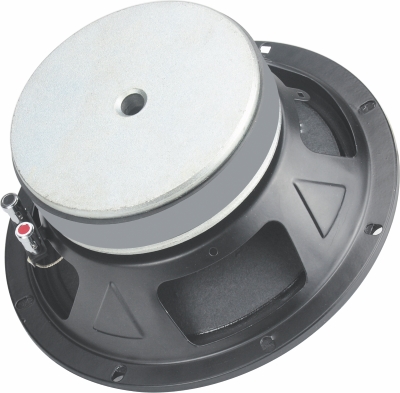

ME-G2 car audio midrange is designed for SPL competitions. The size including 6”, 8”and 10”. High flux Ferrite magnet system. ME-G2 features a solid, robust structure and, like all the other SPL Show components, it employs a CCAW voice coil wound on a two-layer Kapton SV former, for unheard-of thermal and mechanical capability also in extreme circumstances.
The cone features a non-pressed paper membrane and carbon dust caps, both robust and light weight, as well as double-wave damped fabric surrounds to ensure linearity even under extreme conditions, contributing to high SPL scores.
Spec :
– 10”
– 200 Watts RMS
– 2” voice coil
– impedance: 4 ohms
– freq. response: 81Hz-9KHz
– Sensitivity: 96.4dB
Spec :
– 6”
– 100 Watts RMS
– 1.5” voice coil
– impedance: 4 ohms
– freq. response: 124Hz-15KHz
– Sensitivity: 91.2dB
Spec :
– 8”
– 150 Watts RMS
– 1.5” voice coil
– impedance: 4 ohms
– freq. response: 97Hz-9KHz
– Sensitivity: 93.2dB

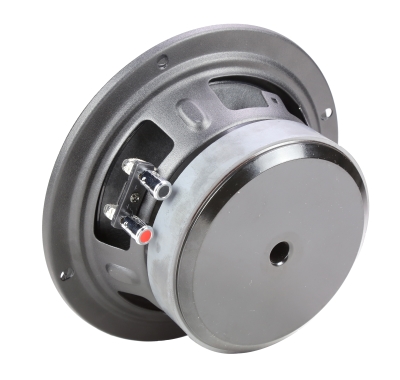

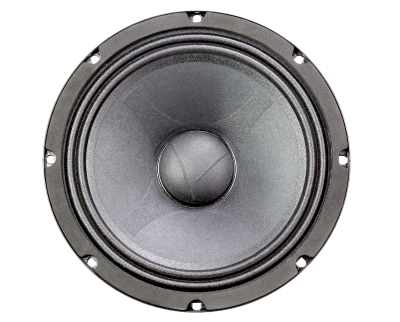

ME-G6 midrange adopts FEM simulation motor structure, high flux ferrite magnet provides highest magnetic offers low distortion and highly motor efficiency, makes the sound cleaner. High temperature CCAW voice coil on polyimide for increased reliability. Stamped steel basket, Fiber non-pressed paper cone, Kevlar loaded treated paper cone and “V” shape cloth edge, Copper demodulating ring inside. Show you the excellent mid-range performance.
Spec :
– 10”
– 300 Watts RMS
– 2.4” voice coil
– impedance: 4/8 ohms
– freq. response: 75Hz-5.5KHz
– Sensitivity: 95.6dB
Spec :
– 6.5”
– 100 Watts RMS
– 1.5” voice coil
– impedance: 4/8 ohms
– freq. response: 100Hz-18KHz
– Sensitivity: 92.1dB
Spec :
– 8”
– 200 Watts RMS
– 2” voice coil
– impedance: 4/8 ohms
– freq. response: 88Hz-9.1KHz
– Sensitivity: 94dB
Spec :
– 6.5”
– 150 Watts RMS
– 1.5” voice coil
– impedance: 4/8 ohms
– freq. response: 118Hz-12KHz
– Sensitivity: 92dB
Spec :
– 8”
– 250 Watts RMS
– 2” voice coil
– impedance: 4/8 ohms
– freq. response: 75Hz-8KHz
– Sensitivity: 95.6dB

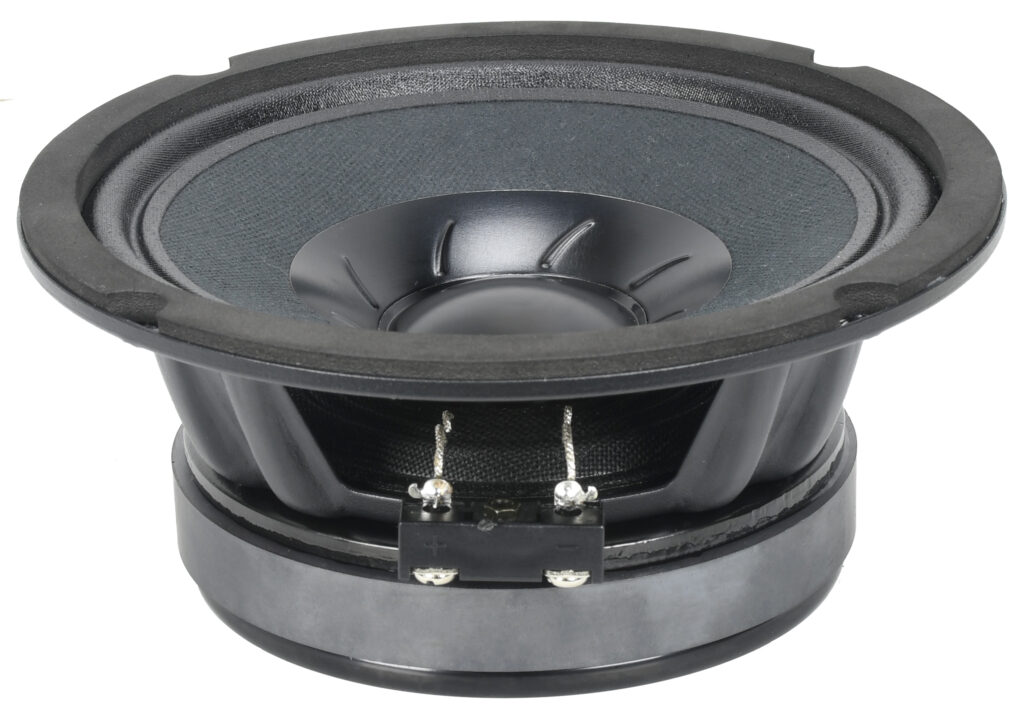

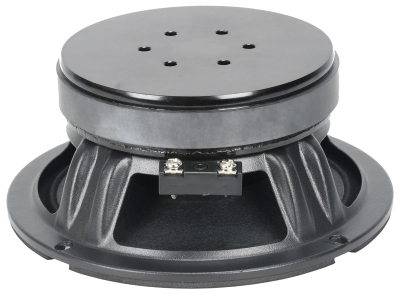

Available with 6”and 8”
Due to the FEM simulation motor structure ensures low distortion and highly motor efficiency.
The ME6HP/ME8HP composite material cone, high flux ferrite magnet, voice coil with CCAW wire, exclusive design improved linear travel and control, to accurately reproduce low frequencies, provides clear and natural sound.
