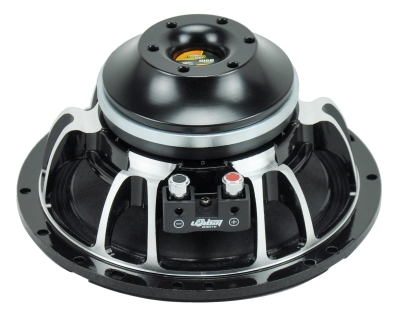

Spec :
– 6.5”
– 50 Watts RMS
– 1.5” voice coil
– impedance: 4 ohms
– freq. response: 148Hz-10KHz
– Sensitivity: 96.3dB
Spec :
– 8”
– 150 Watts RMS
– 2.5” voice coil
– impedance: 4 ohms
– freq. response: 93Hz-10KHz
– Sensitivity: 95dB

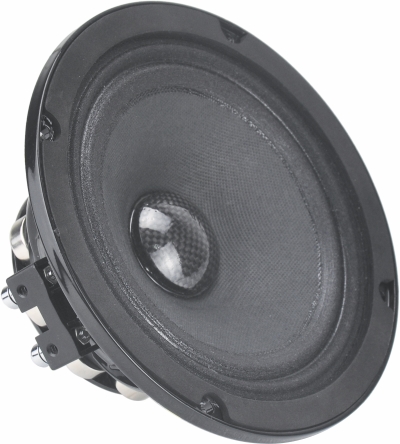

Available with 6”, 8” and 10”

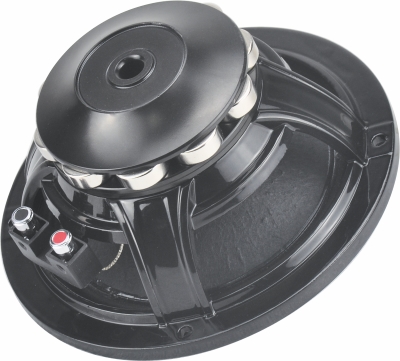

Due to the external Neodymium magnet assembly ensures that high flow concentration, low power compression and heat exchange. Die-Cast Aluminum basket. The exclusive design of the MG-S offers improved linear travel and control, to accurately reproduce low frequencies.
The 1.5”/2” interior aluminum mobile coil uses Sandwich Voice (ISV) interleaved coil technology, composed of a high-strength fiberglass former that is used to transport windings both on the external and internal surfaces to achieve a balanced mass coil.
This results in an extremely linear motor assembly and together with the highly advanced design of the magnetic structure, provides a high force or BL factor.
Spec : 6”
– 100 Watts RMS
– 1.5” voice coil, 4 ohms
– freq. response: 156Hz-9KHz
– Sensitivity: 92.1dB
Spec : 8”
– 150 Watts RMS
– 1.5” voice coil, 4 ohms
– freq. response: 100Hz-9KHz
– Sensitivity: 95.4dB
Spec : 10”
– 200 Watts RMS
– 2” voice coil, 4 ohms
– freq. response: 80Hz-6KHz
– Sensitivity: 96.7dB

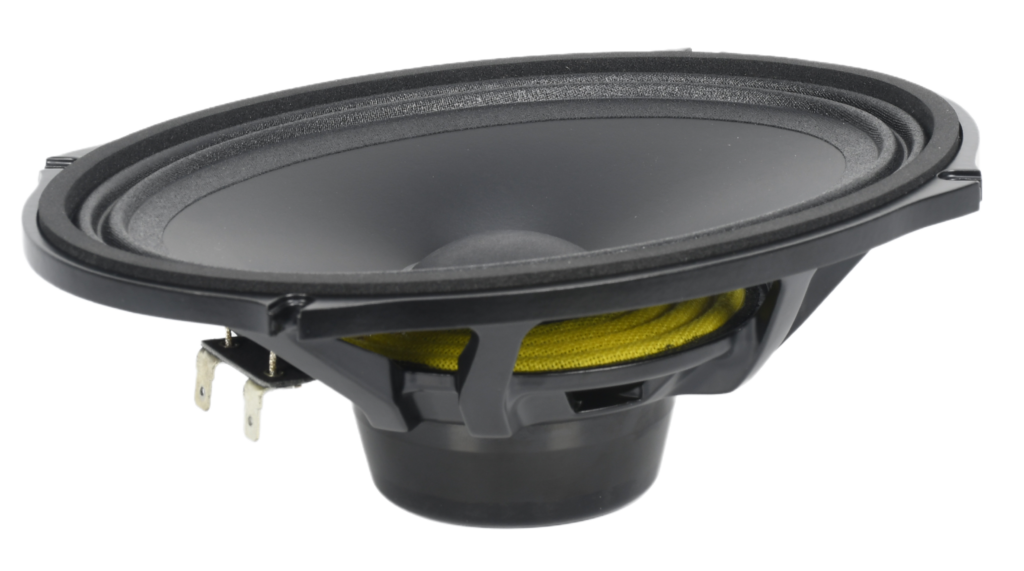

Spec :
– 6*8”
– 125 Watts RMS
– 1.5” voice coil
– impedance: 4 ohms
– freq. response: 132Hz-8KHz
– Sensitivity: 93dB

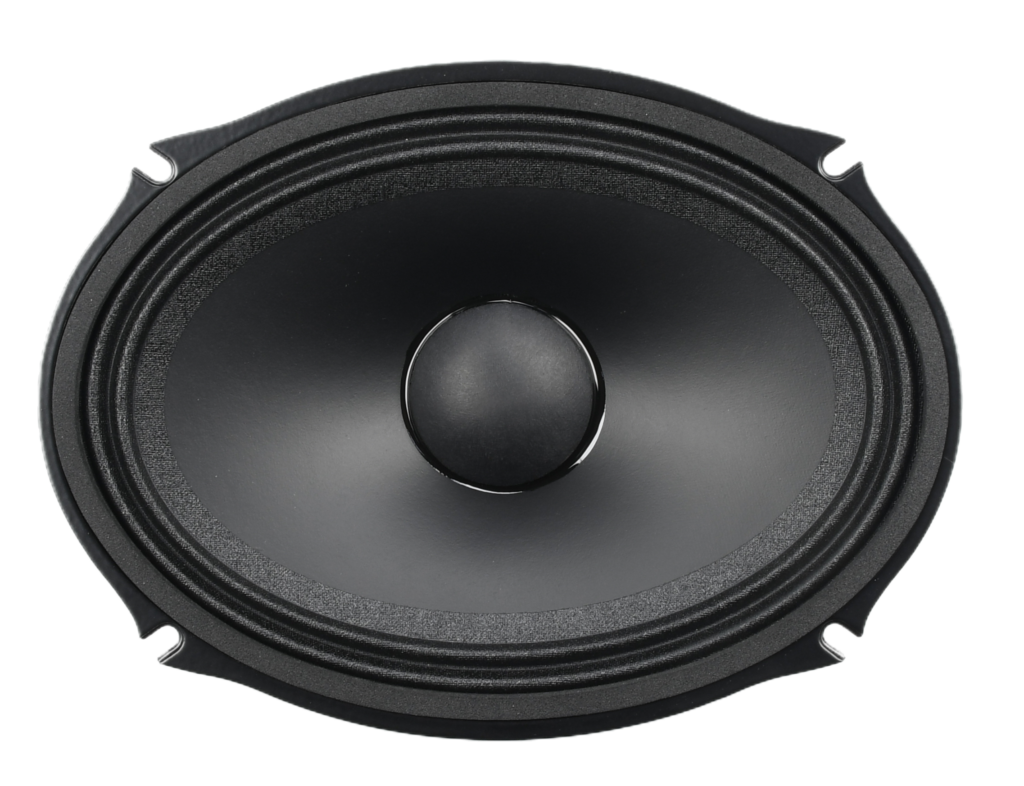

Spec :
– 6*9”
– 125 Watts RMS
– 1.5” voice coil
– impedance: 4 ohms
– freq. response: 125Hz-10KHz
– Sensitivity: 92.3dB
Spec :
– 6”
– 150 Watts RMS
– 1.5” voice coil
– impedance: 4/8 ohms
– freq. response: 130Hz-12KHz
– Sensitivity: 93.5dB
Spec :
– 8”
– 200 Watts RMS
– 1.5” voice coil
– impedance: 4/8 ohms
– freq. response: 80Hz-10KHz
– Sensitivity: 95.6dB
Available with 6” and 8”

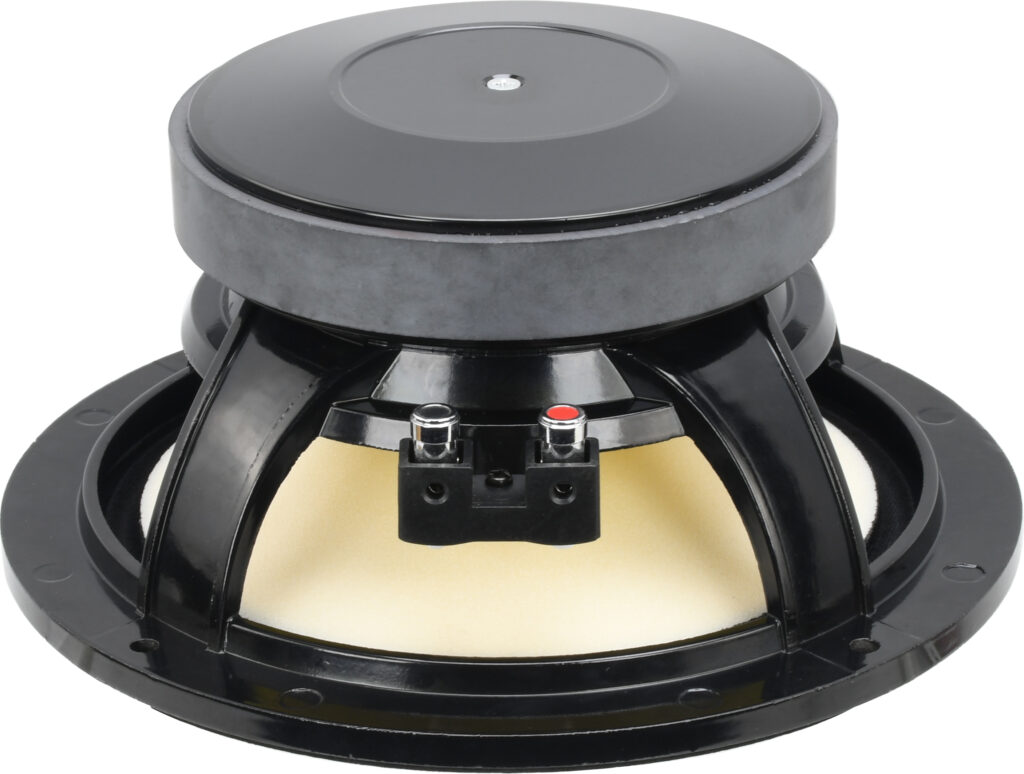

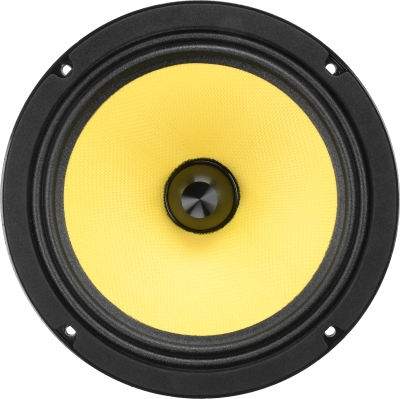

The MG6G3/MG8G3 is an excellent midrange performance speaker. Kevlar cone with linear M surround offering an incredibly balanced and clear listening experience.
High grade ferrite magnet, FEA optimized motor design, copper demodulating ring inside. Engineered for sound excellence delivering an unrivaled listening experience.

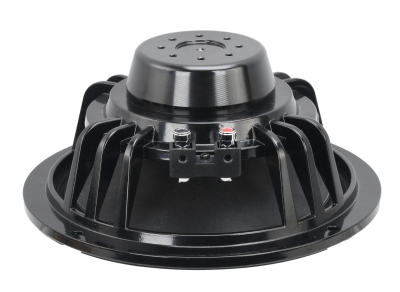

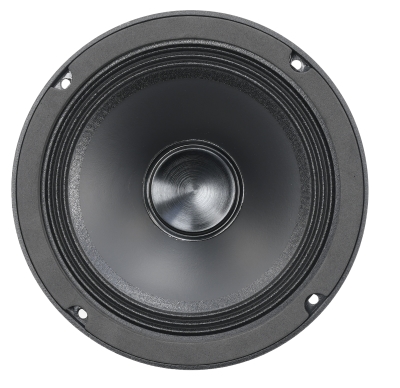

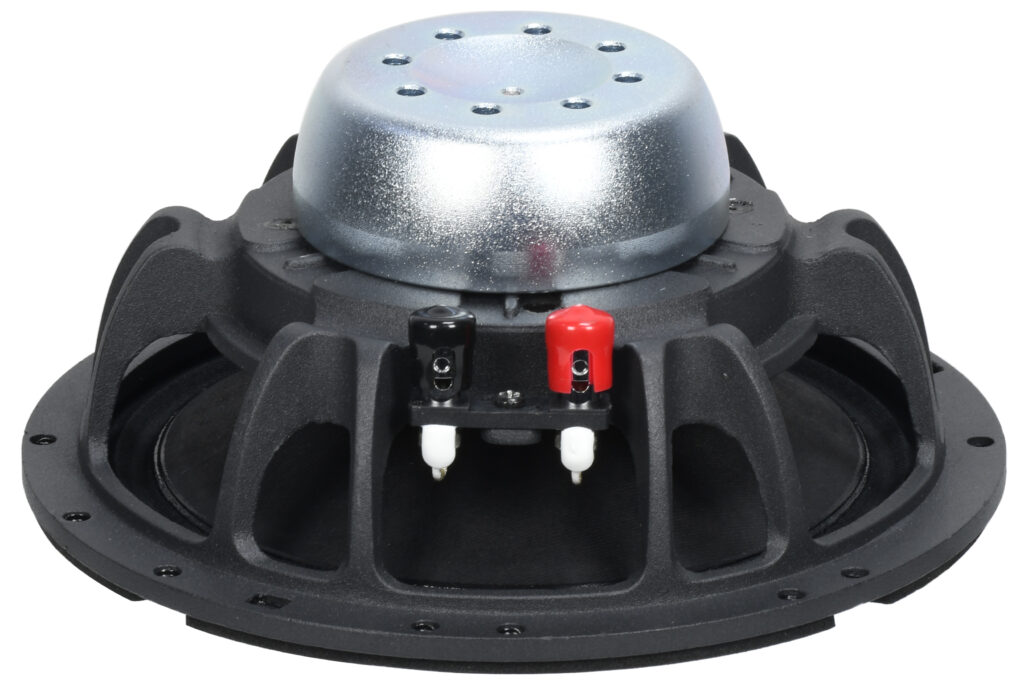

The MG-G5/G6 use high efficiency Neo motor, with air punching cool system. It has been developed in response to a specific sector of the market, which is a new combination and has excellent efficiency and linearity to handle high power capabilities.
Die-Cast basket, copper demodulating ring inside. Kevlar loaded treated pulp cone and linear M shape surround. Shows excellent Mid-high range performance.
Spec : 6”
– 125 Watts RMS
– 1.5” voice coil, 4/8 ohms
– freq. response: 130Hz-12KHz
– Sensitivity: 92.5dB
Spec : 8”
– 175 Watts RMS
– 1.75” voice coil, 4/8 ohms
– freq. response: 90Hz-10KHz
– Sensitivity: 94.6dB
Spec : 6*9”
– 150 Watts RMS
– 1.5” voice coil, 4/8 ohms
– freq. response: 110Hz-8KHz
– Sensitivity: 94.6dB
Spec :
– 6”
– 150 Watts RMS
– 1.5” voice coil
– impedance: 4/8 ohms
– freq. response: 110Hz-11KHz
– Sensitivity: 92.3dB
Spec :
– 8”
– 205 Watts RMS
– 1.75” voice coil
– impedance: 4/8 ohms
– freq. response: 70Hz-9KHz
– Sensitivity: 94.4dB
Spec :
– 6”
– 125 Watts RMS
– 1.5” voice coil
– impedance: 4/8 ohms
– freq. response: 130Hz-12KHz
– Sensitivity: 92.5dB
Spec :
– 8”
– 175 Watts RMS
– 1.75” voice coil
– impedance: 4/8 ohms
– freq. response: 90Hz-10KHz
– Sensitivity: 94.6dB
Spec :
– 6”
– 150 Watts RMS
– 1.5” voice coil
– impedance: 4/8 ohms
– freq. response: 110Hz-11KHz
– Sensitivity: 92.3dB
Spec :
– 8”
– 205 Watts RMS
– 1.75” voice coil
– impedance: 4/8 ohms
– freq. response: 70Hz-9KHz
– Sensitivity: 94.4dB
